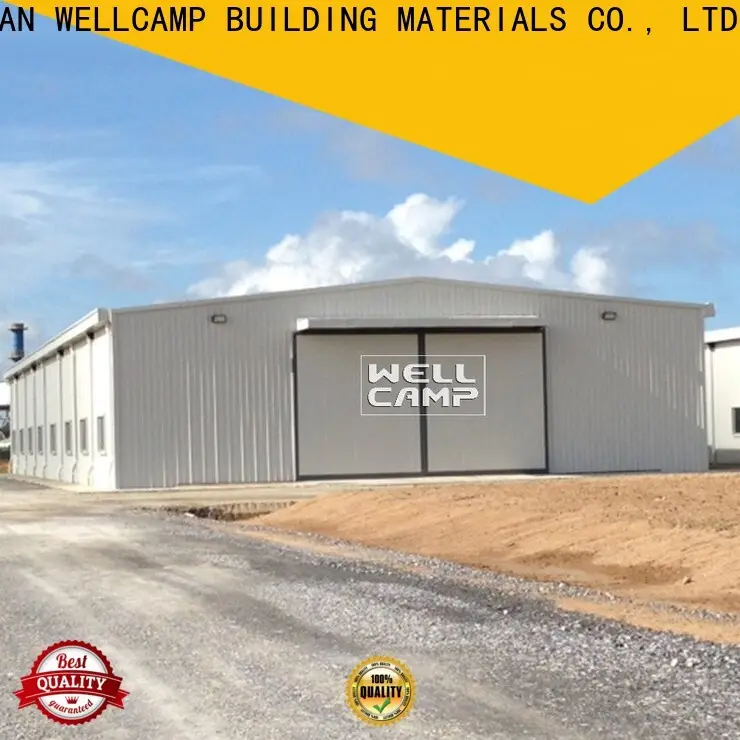

WELLCAMP, WELLCAMP prefab house, WELLCAMP container house prefabricated warehouse supplier for sale1
1. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house prefabricated warehouse has gone through a series of tests. These tests include electric safety tests for obtaining national and international approvals, noise emission measurements, and risk analysis. The service life of the product is more than 20 years
2. This product is great for tight spaces or for allowing additional storage. This means that one can have extra storage space to store goods and items. It is made of environmentally-friendly materials to protect the ecological system
3. The product has the advantage of corrosion resistance. When it is subjected to the atmosphere, it won't react with the air. The product has a good bearing capacity which is shock-resistant
4. The product is resistant to fire. It is able to ensure that its structural integrity remains while shielding from heat. Its materials prove to have premium plasticity and toughness
5. The product features chemical resistance. It can resist the effects of chemicals like acids, salts, and alkalis and won't easily swell or soften. It provides users with a safe and comfortable living environment
| Sort | Name | Specification |
Size | Length | 48.61m |
| Width | 18.76m | |
| Height | 6m | |
| Total area | 911.93m2 | |
Steel structure | Column | H beam |
| Beam | H beam | |
| Purlin | c section steel | |
Panel | Wall panel | 50mm EPS sandwich panel |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | 1500*930 Aluminum sliding window |
| Door | Electric roller door, steel sliding door | |
◪1.The structure is strong “H” section steel and “C” section steel. |
◪2.Single steel sheet or sandwich panel for the wall & roof. |
◪3.Normally requires cement foundation of 600mm at least. |
◪ 4.The height of the brick or concrete wall from 1m to 2m is suggested, for a better waterproofing performance before installing prefabricated wall panels. |
◪ 5.All the steel structure is painted and anti-rust which can be normally used for more than 30 years without any building wastes. |
◪ 6. Easy to build. The building is connected by bolts and screws. 6 labors constitute one team, can install areas of 300 square meters each day. |
Workshop 3D model
Material parameters
Main steel：C section steel for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Wall and roof panel: | EPS/IEPS/ROCK WOOL/PU |
Thickness of the wall and roof: | 50mm/75mm/100mm |
Delivery time: | Normally 20-25 days |
Container loading(50mm): | 300㎡/HQ |
This workshop can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
Company Features
1. All testing reports are available for our prefabricated warehouse.
2. We constantly collaborate with our clients to ensure that our endeavors are strategically implemented to achieve economically sustainable development.
