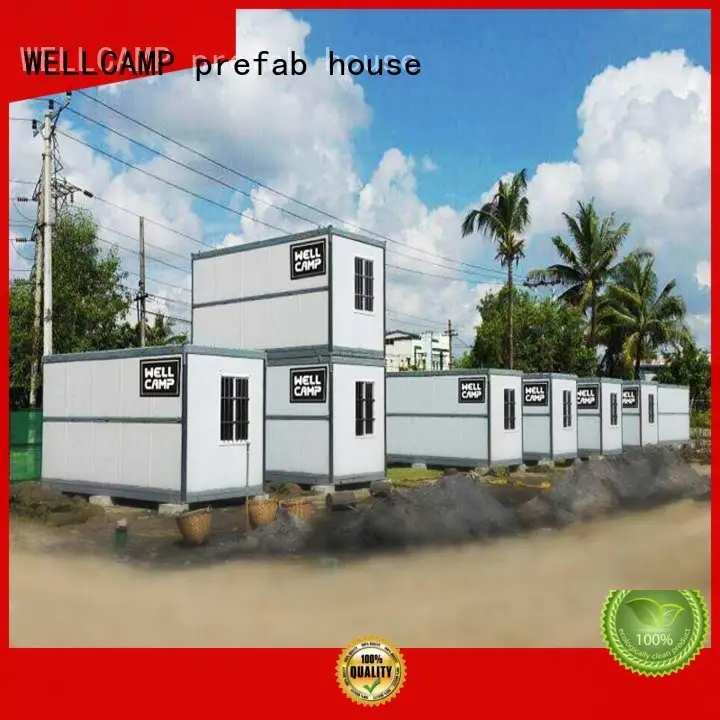

light steel folding container house maker wholesale
1. The roof and interior and exterior walls of folding container house are smooth in surface, bright in color and soft in texture. In addition, the design of doors and windows is scientific and reasonable.
2. Its production adheres to the principle of Quality First.
3. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD has established several service centers for overseas customers.
| Sort | Name | Specification |
Size | Length | 21.84m |
| Width | 5.46m | |
| Height | 2.85m | |
| Total area | 79.499m2 | |
Steel structure | Column | c section steel |
| Beam | c section steel | |
| Purlin | c section steel | |
Panel | Wall panel | 50mm rock wool sandwich panel |
| Roof panel | 50mm rock wool sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | IEPS sandwich panel door | |
| Payment terms | T/T,L/C | |
| MOQ | 10 | |
◪1.Unit figure for K house dimension is K. 1k=1.82m. |
◪2.K house can be done as 1 floor, 2 floors or 3 floors building. Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ). |
◪3.K house is commonly used with qualified water proof, fire proof （EPS/Rock wool/IEPS/PU sandwich panel）, heat insulation and sound insulation performance. |
◪ 4.K house use Reusable materials and is more environment friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 5.K house is Anti worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with very limited amount of building wastes. |
◪ 6.K house only requires level concrete floor for the foundation. |
◪ 7.labors one team, each day can install more than 300 m2. |
K-House 3D model
Material parameters
Main steel：C section steel for column&beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |
This prefab house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
◪1.Unit figure for K house dimension is K. 1k=1.82m. |
◪2.K house can be done as 1 floor, 2 floors or 3 floors building. Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ). |
◪3.K house is commonly used with qualified water proof, fire proof （EPS/Rock wool/IEPS/PU sandwich panel）, heat insulation and sound insulation performance. |
◪ 4.K house use Reusable materials and is more environment friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 5.K house is Anti worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with very limited amount of building wastes. |
◪ 6.K house only requires level concrete floor for the foundation. |
◪ 7.labors one team, each day can install more than 300 m2. |
K-House 3D model
Material parameters
Main steel：C section steel for column&beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |
This prefab house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
Company Features
1. Over years of development, Guangdong WELLCAMP BUILDING MATERIALS CO., LTD has surpassed many other manufacturers when it comes to produce and supply quality foldable shipping container .
2. Since inception, we have won national awards on technology developments, such as product innovation and creativity. These awards are strong supporting evidence of our R&D ability.
3. WELLCAMP Prefab-House aims to cooperate with customers to develop a higher quality on competitive products. Inquire! WELLCAMP, WELLCAMP prefab house, WELLCAMP container house always sticks to the client first principle. Inquire! By providing the best quality and professional service, Guangdong WELLCAMP BUILDING MATERIALS CO., LTD hopes to establish more partnerships with each customer. Inquire! Guangdong WELLCAMP BUILDING MATERIALS CO., LTD is a well-known company that is committed to becoming one of the most competitive exporters in the foldable houses on trailers market. Inquire!
