Modern economic prefab homes for accommodation, Wellcamp T-8
1. The materials of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house china prefabricated house manufacturers are sourced strictly in line with specification requirements for hardware tools&accessories. Any unqualified materials will be eliminated out.
2. [企业简称] has established a scientific and standardized production process, and has improved the quality control system. The production details are carefully controlled in an all-round way to ensure that prefab container homes is a high-quality product that meets international standards.
3. This product features easy usage and best performance. By using the product, no construction waste will be generated
4. The superior quality of the product guarantees service life. It is frequently displayed in the international exhibition, such as the Canton Fair
5. This product is thoroughly checked and is able to endure long-term usage. Its stable quality is achieved by the efforts of the design team, engineer team, innovation team, and QC team
| Sort | Name | Specification |
Size | Length | 19.95m |
| Width | 10.45m | |
| Height | 5.7m | |
| Total area | 445.9m2 | |
Steel structure | Column | Square tube steel |
| Beam | Square tube steel | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich Panel |
| Roof panel | 50mm EPS sandwich Panel | |
Accessories | Window | 1200*930 aluminum sliding window |
| Door | 880*2040 steel door | |

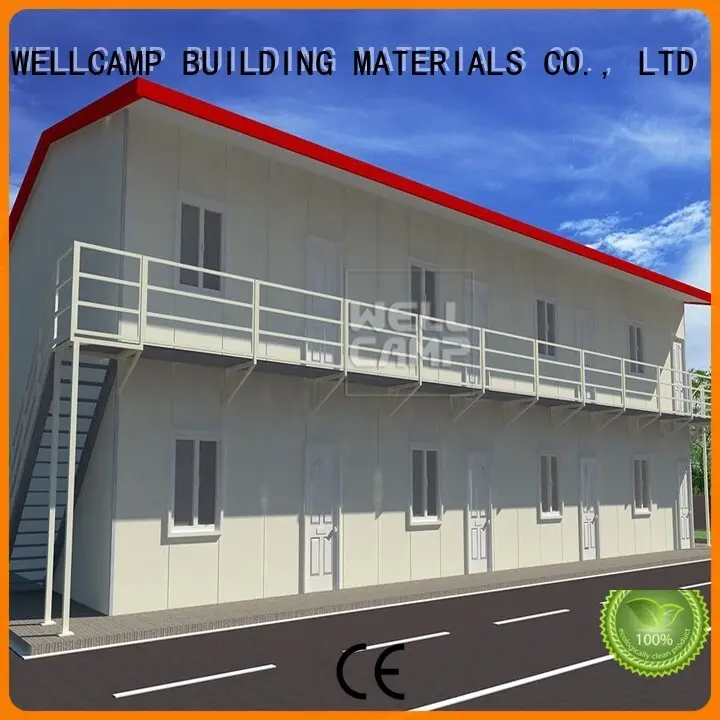

3D drawings for the prefab prefabricated dormitory building. Totally have 8 rooms, each room around 52 square meters, 6-8 workers live in it.
All the steel structures are hidden inside, cheap modern prefab house.
◪1.Unit figure for T house dimension is T. 1T=0.95m. |
◪2.T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3.Better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house is famous with good water proof, fire proof, heat insulation and sound insulation performance. |
◪ 5.T house use Reusable materials and is more environment friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is Anti worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7.T house only requires level concrete floor for the foundation. |
◪ 8.Easy installation, the house is connected by screw and bolt. It can be assembled and disassembled by 6 times. |
◪ 9.6 labors one team, each day can install more than 300 m2. |
T-House 3D model
Material parameters
Main steel：Square tube steel for column&beam；
Wall panel：50mm EPS Sandwich panel；
Roof panel：50mm EPS Sandwich panel；
Window：Aluminum sliding window；
Door：steel door；
ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/m2 |
Live load capacity of roofing: | 0.6 kn/m2 |
External and internal wall heat transmission coefficient: | 0.35 kcal/m2hc |
Wall permitted loading: | 0.6 kn/m2 |
Second floor load capacity: | 180kg/m2 |
Live load of corridor: | 2.5kn/m2 |
Density of Rock wool: | 60 kg/m2 |
Density of PU: | 40 kg/m2 |
Density of EPS: | 12 kg/m2 |
Density of IEPS: | 20kg/m/2 |
Delivery time: | Normally 20-25 days |
Container loading: | 300m2 |
This prefab house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
Company Features
1. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD is generally considered as a credible company since it specialized in the field of china prefabricated house manufacturers .
2. To distinguish us from other companies is that our prefab container homes enjoys a longer lifespan.
3. The establishment of a good brand image needs the efforts of each WELLCAMP, WELLCAMP prefab house, WELLCAMP container house employee. Ask online!
