prefab warehouse cost professional for chicken shed WELLCAMP, WELLCAMP prefab house, WELLCAMP container house
1. The materials are the soul of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house prefab warehouse cost and well-selected from top grade suppliers. These materials perform well in the whole lifespan of the product.
2. The unique steel workshop and commercial value of prefab warehouse cost have made it a hot product in China.
3. steel workshop is optimized to maximize profits, and at the same time minimize the impact of business operations on the environment.
4. To sum up, steel workshop has excellent quality, reasonable price, distinctive features and a predictable large circulation.
| Sort | Name | Specification |
Size | Length | 54m |
| Width | 24m | |
| Height | 6m | |
| Total area | 1296m2 | |
Steel structure | Column | "H" section steel |
| Beam | "H" section steel | |
| Purlin | “C” section steel | |
Panel | Wall panel | 0.426 color steel sheet |
| Roof panel | 0.426 color steel sheet | |
Accessories | Window | 1200*930 aluminum sliding window |
| Door | Electric roller door | |

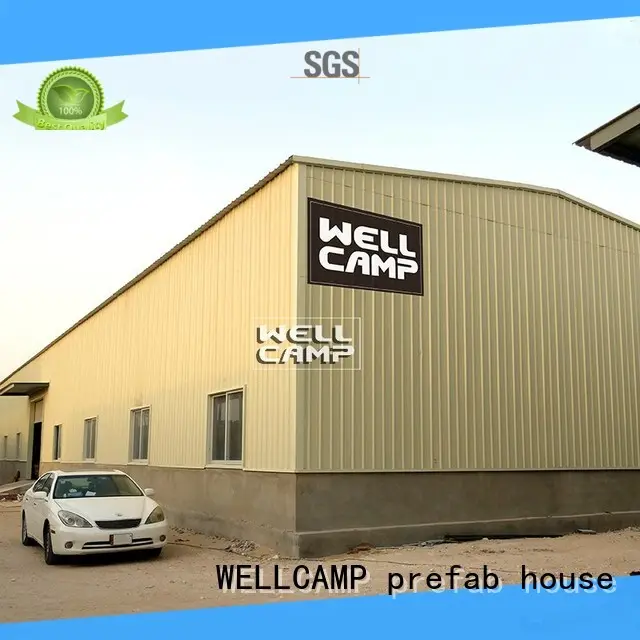

This steel structure workshop is located in Qatar. To keep safer and avoid the water to come inside, it needs to build a one-meter high wall before installing the wall panel.
Wellcamp construction building is a strong steel building provided at a competitive price.
◪1.The structure is strong “H” section steel and “C” section steel. |
◪2.Single steel sheet or sandwich panel for the wall and roof. |
◪3.Normally requires cement foundation of 600mm at least. |
◪ 4.The height of the brick or concrete wall from 1m to 2m is suggested, for a better waterproofing performance before installing prefabricated wall panels. |
◪ 5.All the steel structure is painted and anti-rust which can be normally used for more than 30 years without any building wastes. |
◪ 6.Easy to build. The building is connected by bolts and screws. 6 labors constitute one team, can install areas of 300 square meters each day. |
Workshop 3D model
Material parameters
Main steel："H" section steel for column & beam；
Wall panel：0.426mm single steel sheet；
Roof panel：0.426mm single steel sheet；
Window：Aluminum sliding window；
Door：Electric roller door ;
Ridge capping： 0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Wall and roof panel: | EPS/IEPS/ROCK WOOL/PU |
Thickness of the wall and roof: | 50mm/75mm/100mm |
Delivery time: | Normally 20-25 days |
Container loading(50mm): | 900㎡/HQ |
This workshop can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
Company Features
1. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house boasts for its prefab warehouse cost .
2. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD owns advanced hardware facilities and powerful R&D superiorities.
3. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD will always supply high quality steel workshop with professional after-sale service. Inquire online! By working closely together, WELLCAMP, WELLCAMP prefab house, WELLCAMP container house laid the foundation for successful cross-cultural collaboration. Inquire online!
