1. The needs of designing latest tiny houses prefab is the fostering of a vibrant and dynamic WELLCAMP, WELLCAMP prefab house, WELLCAMP container house.
2. The product has been tested for performance and durability.
3. This product is practical and economical and thus has been accepted by many customers.
4. The product is considered to have high market value and has a good market prospect.
| Sort | Name | Specification |
Size | Length | 10K(18.36m) |
| Width | 2K(3.8m) | |
| Height | 6P | |
| Total area | 176.08 m² | |
Steel structure | Column | "C" section steel |
| Beam | "C" section steel | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich Panel |
| Roof panel | 50mm EPS sandwich Panel | |
Accessories | Window | 1740*925 aluminum sliding window |
| Door | Steel door outside | |

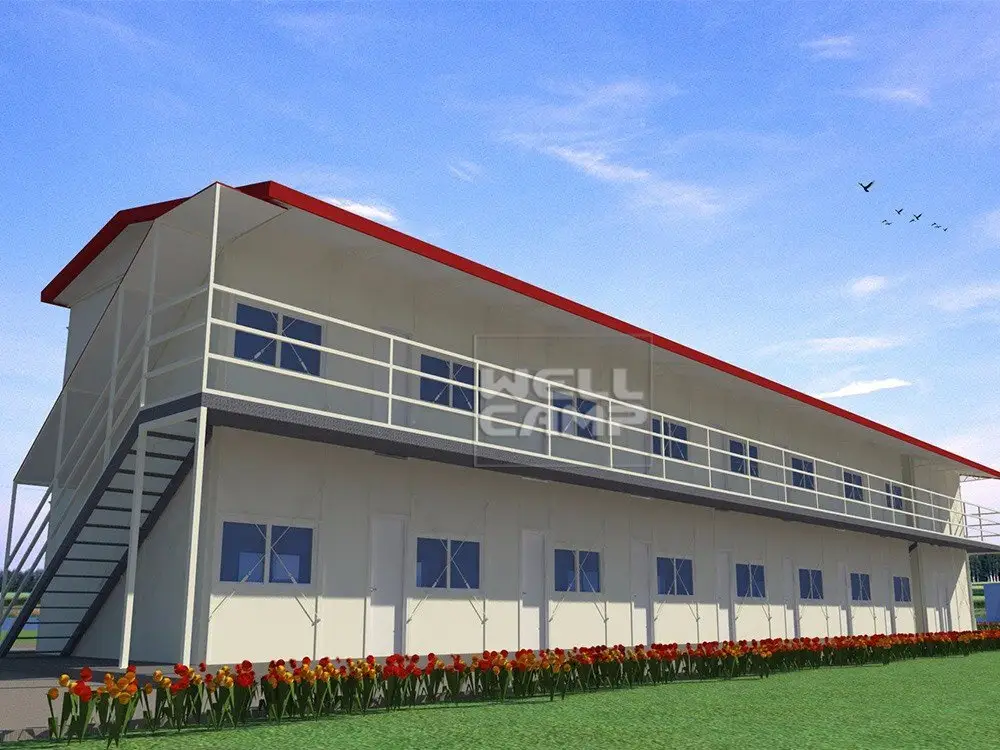

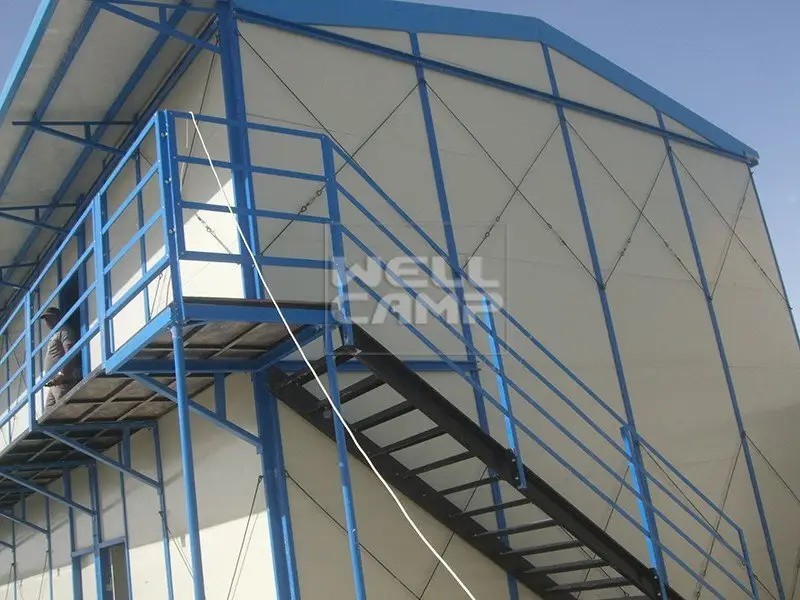

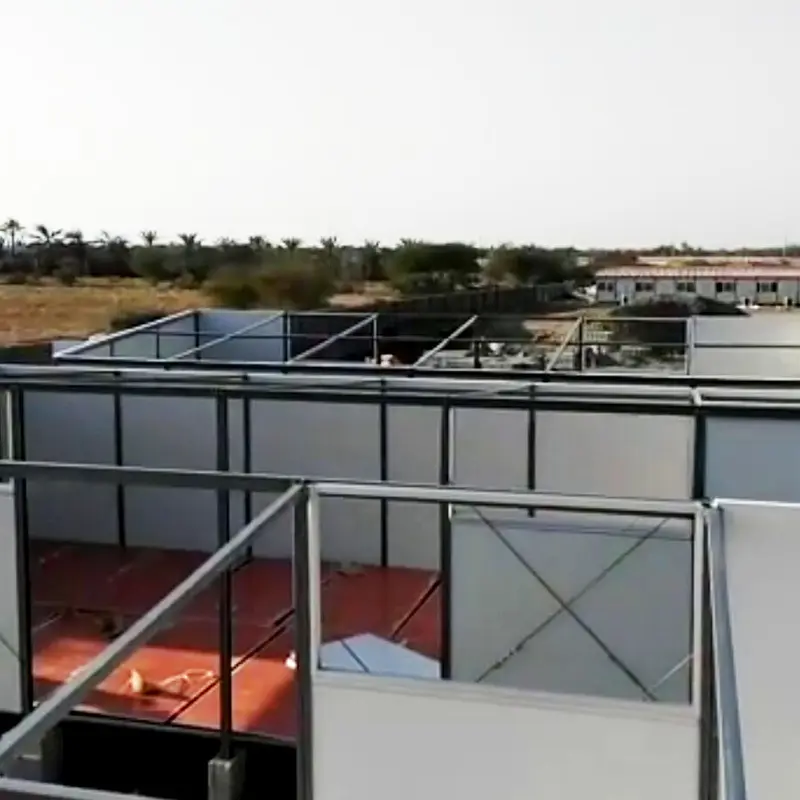

This two-floor prefabricated house is built for the worker dormitory.
One side of this prefab building are the bedrooms, another side are the public bathrooms.
◪1. The unit figure for K house dimension is K. 1k=1.82m |
◪2.K house can be done as 1 floor, 2 floors or 3 floors building. Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ). |
◪3. K house is commonly used with qualified waterproof, fireproof （EPS/Rock wool/IEPS/PU sandwich panel）, heat insulation and sound insulation performance. |
◪ 4. K house uses reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled 6 times. |
◪ 5.K house is Anti worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with very limited amount of building wastes. |

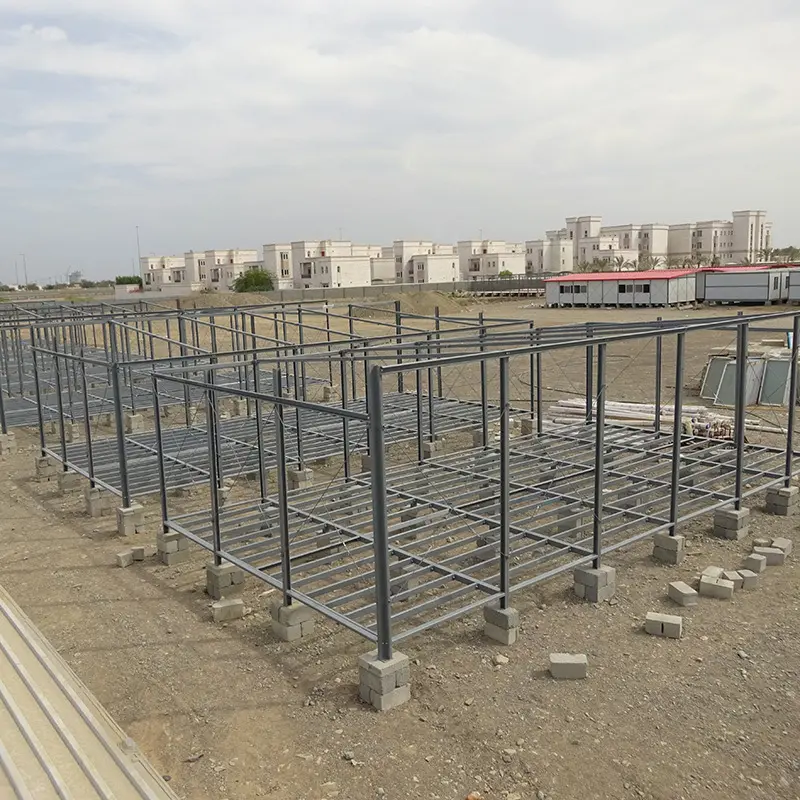

◪ 6.K house only requires level concrete floor for the foundation. |

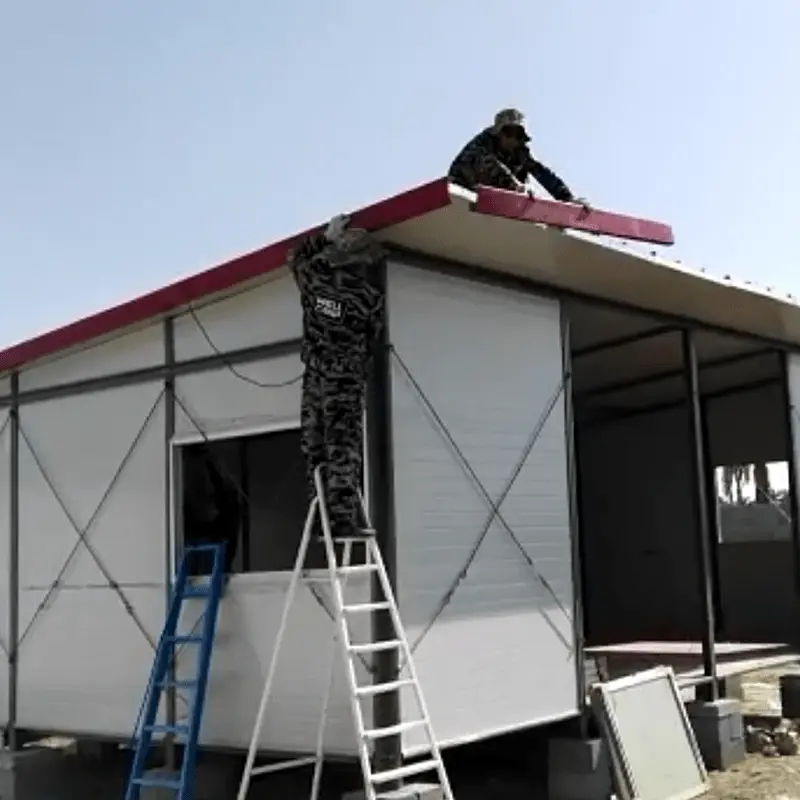

◪ 7. 6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |

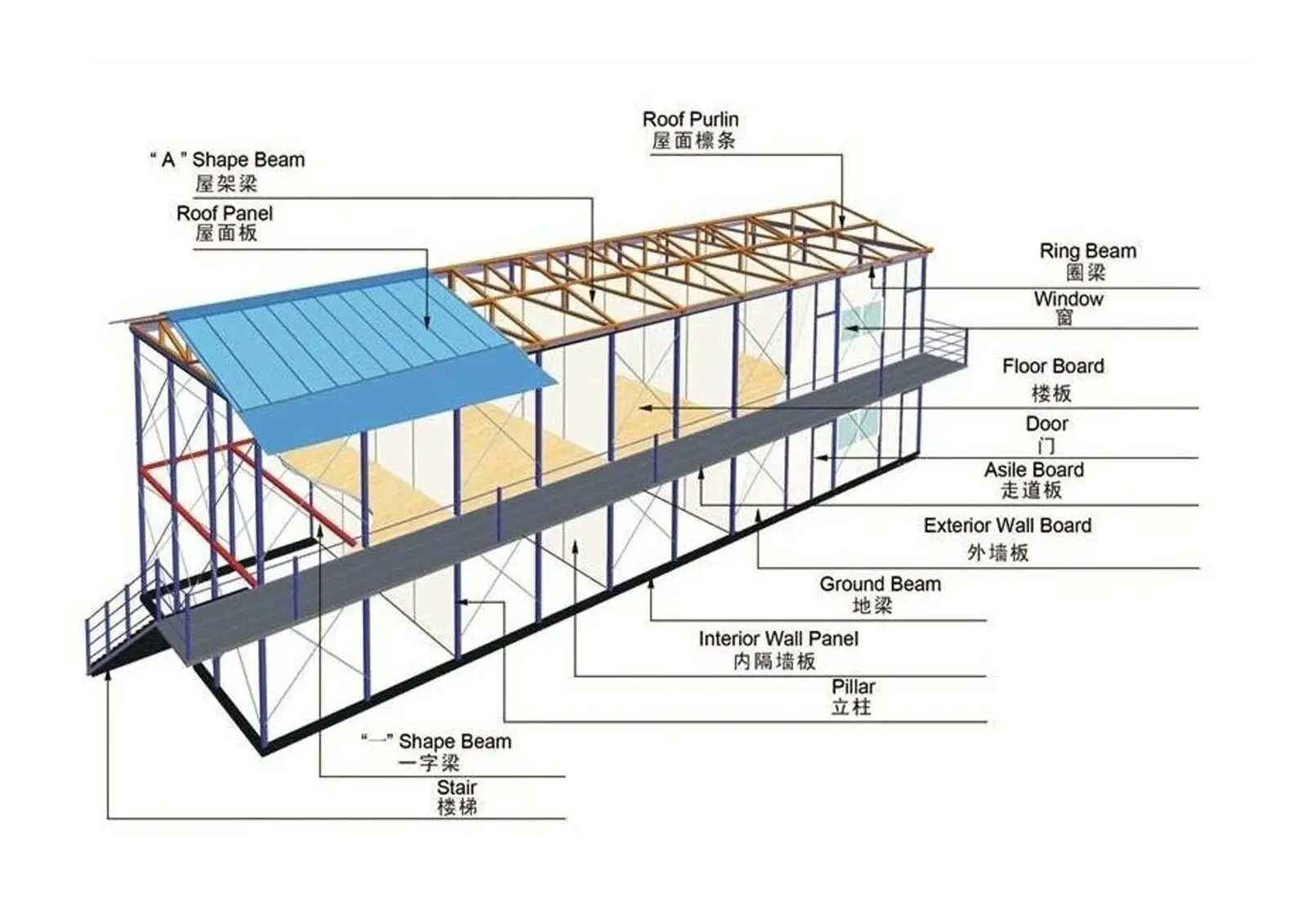

K-House 3D model
Material parameters
Main steel：C section steel for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping: 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |

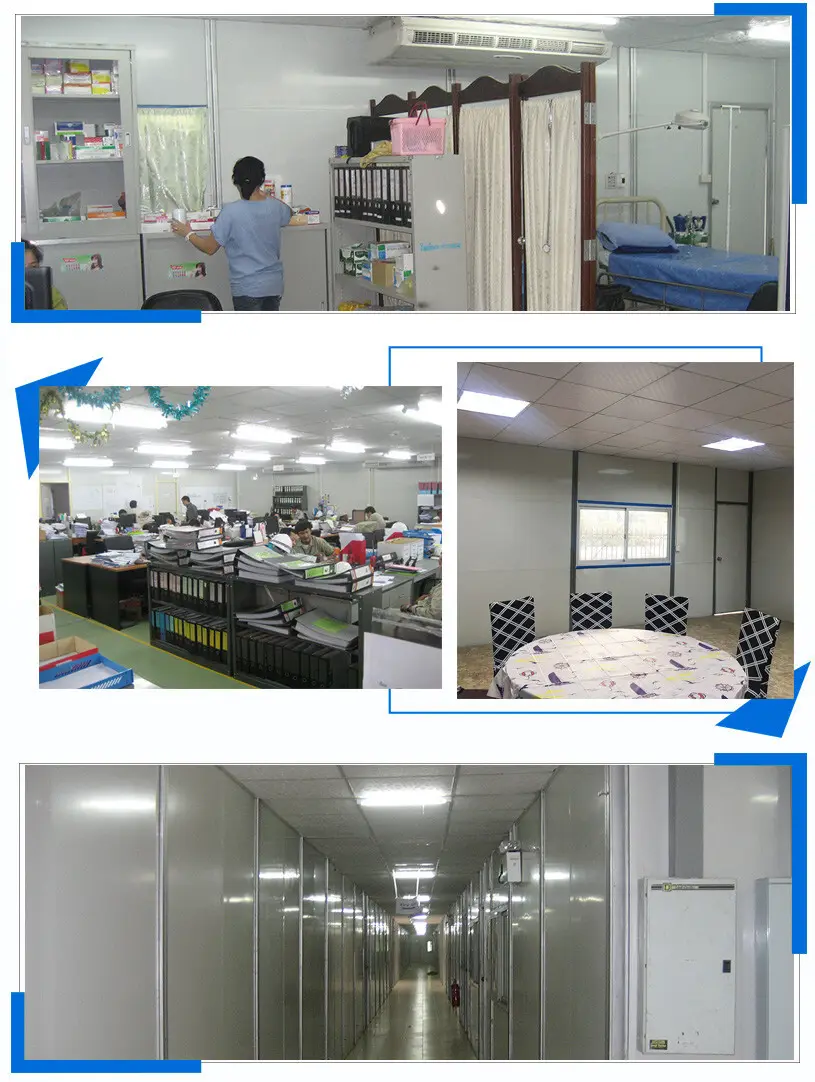

This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
