room t3 panel WELLCAMP, WELLCAMP prefab house, WELLCAMP container house Brand modular prefabricated house suppliers manufacture
1. We are using high quality prefab houses for sale only. The product has a good bearing capacity which is shock-resistant
2. As a quality-oriented organization, we are focused to provide our clients excellent quality prefab house kits. Its stable quality is achieved by the efforts of the design team, engineer team, innovation team, and QC team
3. In order to accomplish diverse requirements of our esteemed customers, these products are available in numerous sizes and finishes.
4. Its quality is monitored by the strict quality inspection team. It is made of environmentally-friendly materials to protect the ecological system
5. The product is widely demanded in the global market and has the potential to be applied more in the future. The service life of the product is more than 20 years
6. Our high standard quality management system guarantees the product meets with the international standards. The product is easy to move and install
7. As a company who specializes in operating the business of producing prefab guest house, WELLCAMP, WELLCAMP prefab house, WELLCAMP container house has been widely recognized by most customers. It is highly evaluated by customers around the world, such as the Middle East, Africa, and Southeast Asia
8. High quality has always been what Guangdong WELLCAMP BUILDING MATERIALS CO., LTD is after. It can be freely combined with other products to maximize the space
9. The high quality T prefabricated House contributes to the spreading sales network of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house. Its outer appearance is characterized by vivid color
| Sort | Name | Specification |
Size | Length | 43.7m |
| Width | 7.8m | |
| Height | 2.8m | |
| Total area | 340.86m2 | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich panel |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | 1200*930 Aluminum sliding window |
| Door | Glass door & Steel door | |

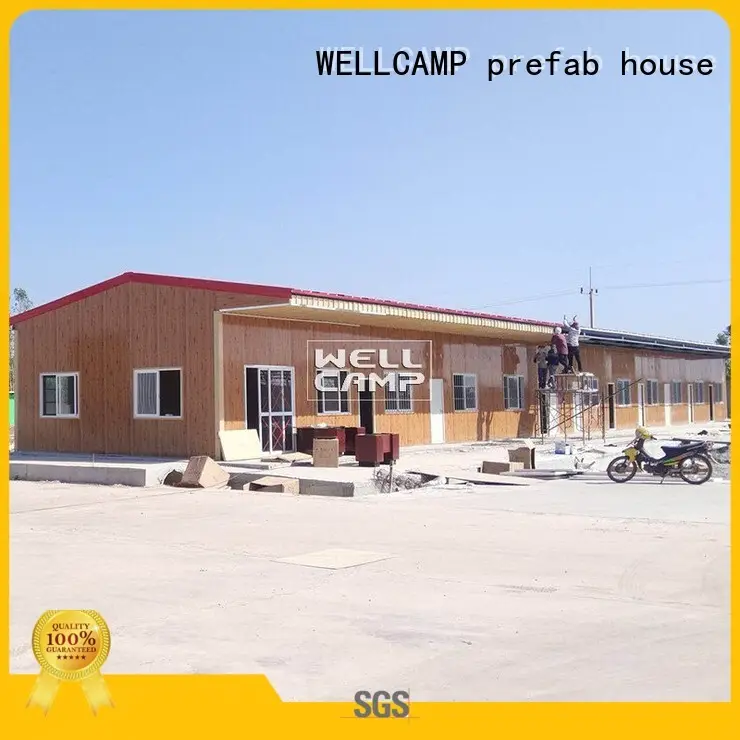

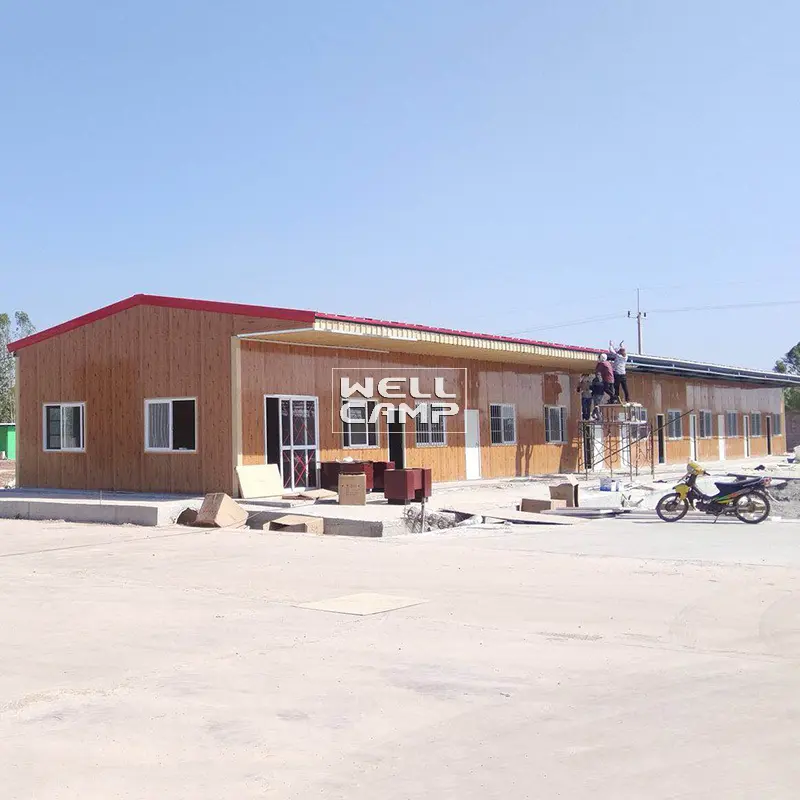

This prefab construction building is located in Thailand.The plan of this office building,have two offices,one meeting room and two toilet.

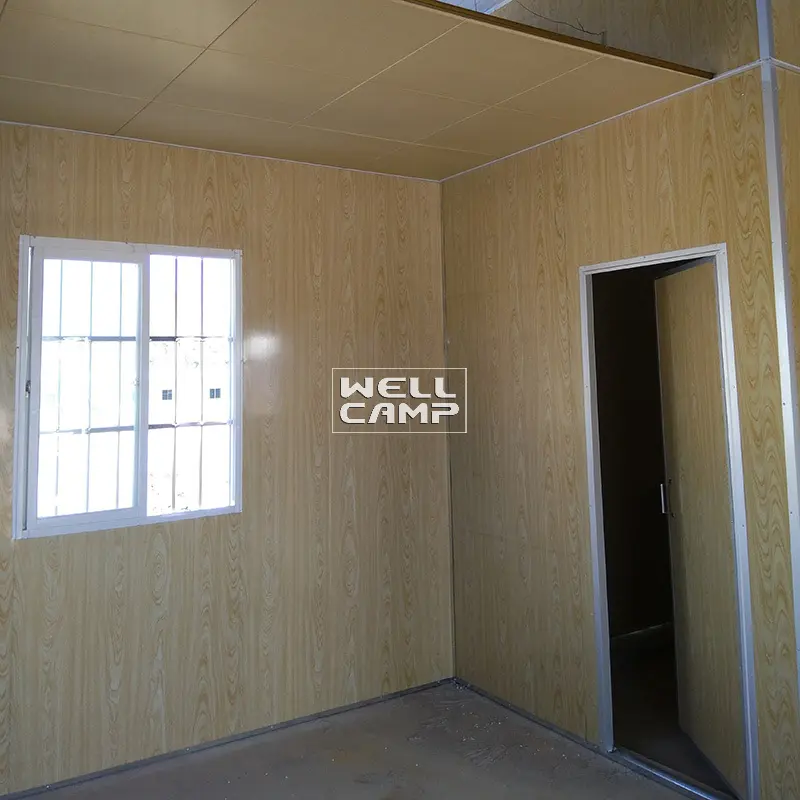

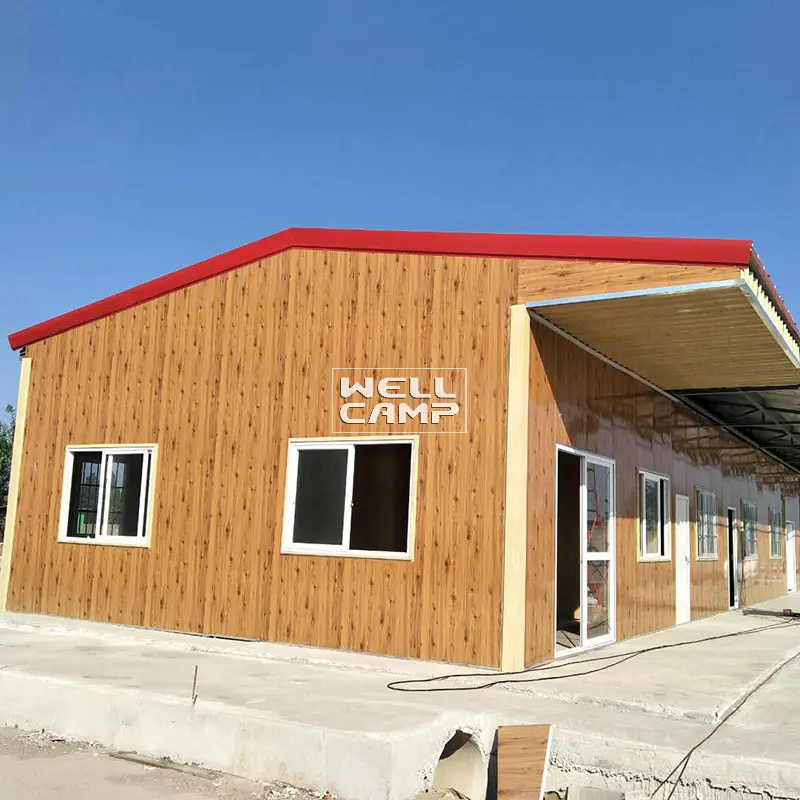

The color of the outside and inside wall is wooden. The one-meter width canopy provides protection for the sunshine and rain.
◪1. The unit figure for T house dimension is T. 1T=0.95m. |

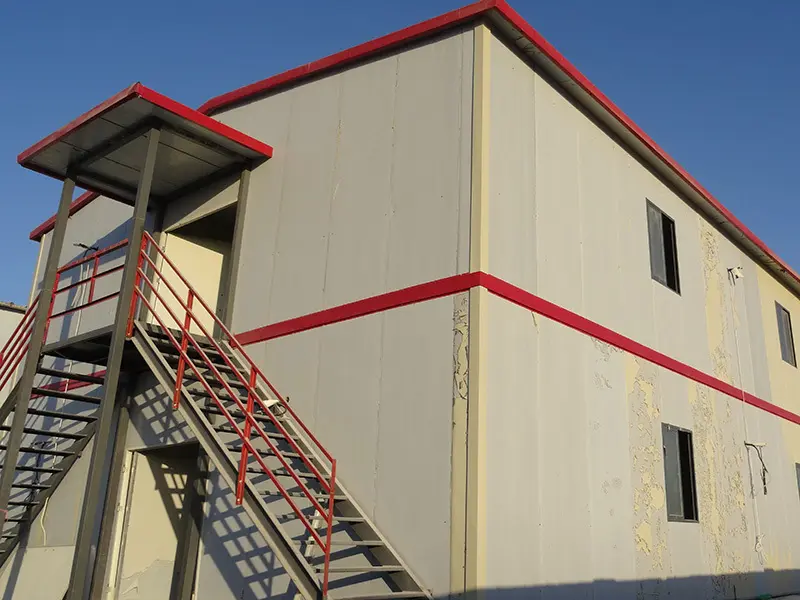

◪2. T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3.3. The T house has a better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house features with good waterproof, fireproof, heat insulation and sound insulation performance. |
◪ 5.T house use reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is anti-worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7.T house only requires level concrete floor for the foundation. |
◪ 8.Easy installation. The house is connected by screws and bolts. It can be assembled and disassembled 6 times. |
◪ 9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |

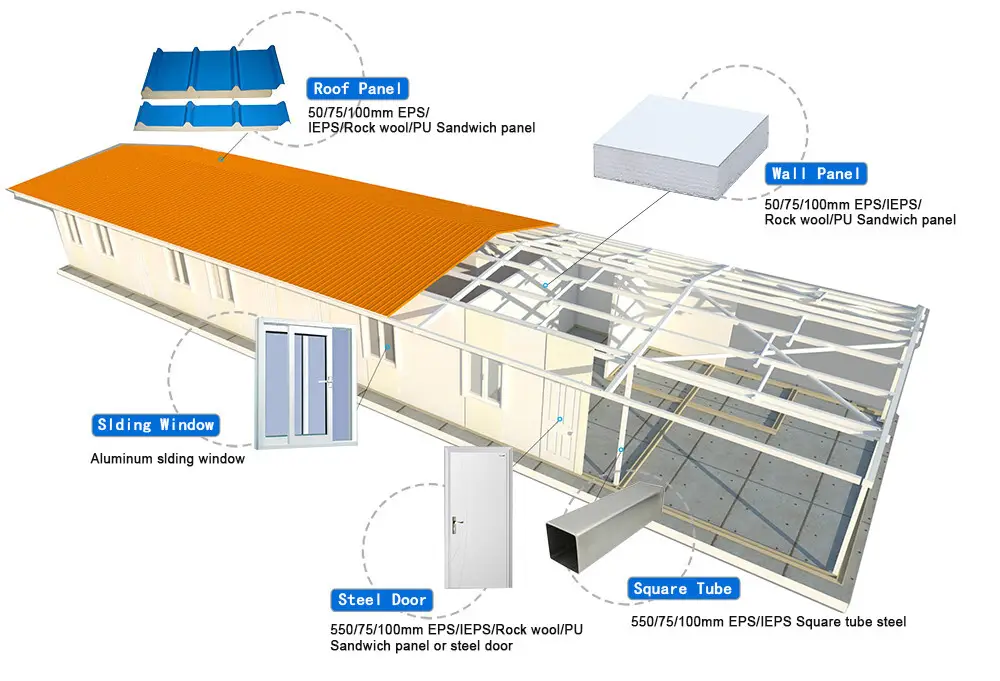

T-House 3D model
Material parameters
Main steel：square tube for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Second floor load capacity: | 180kg/㎡ |
Live load of corridor: | 2.5kn/㎡ |
Density of Rock wool: | 60 kg/㎡ |
Density of PU: | 40 kg/㎡ |
Density of EPS: | 12 kg/㎡ |
Density of IEPS: | 20kg/㎡ |
Delivery time: | Normally 20-25 days |
Container loading: | 300㎡ |

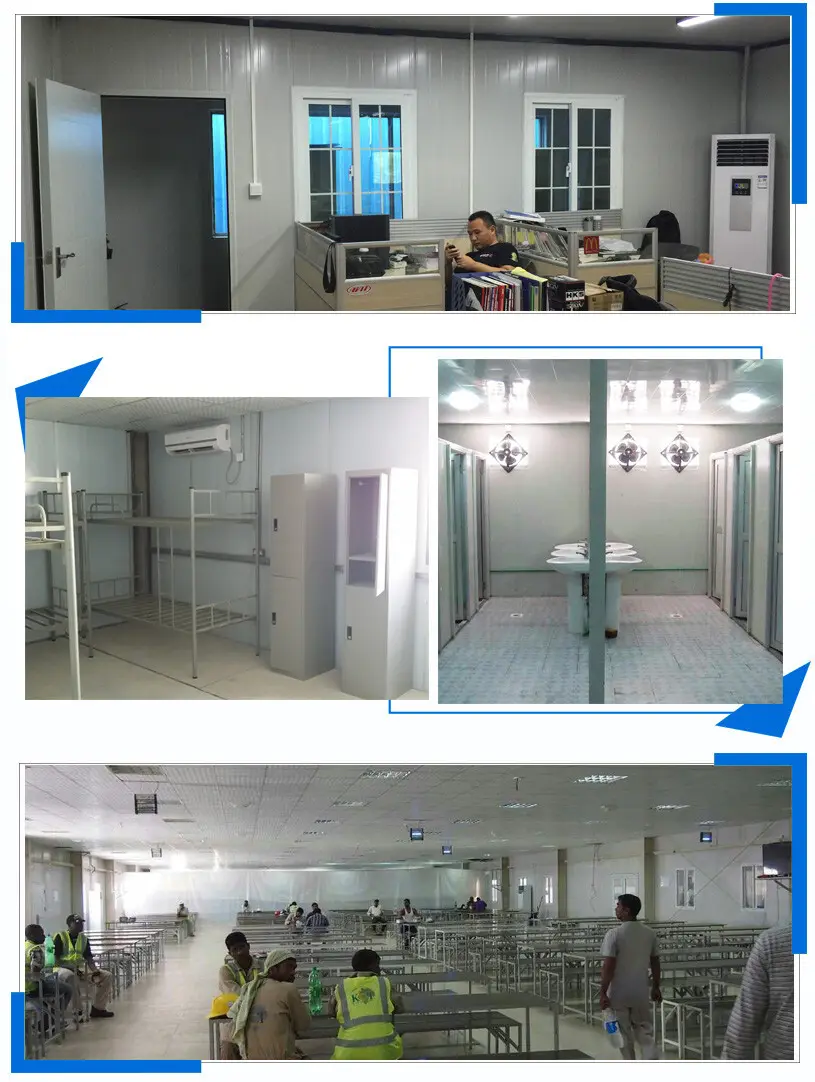

This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
Company Features
1. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD offers a perfect solution for all modular prefabricated house suppliers needs of different industries by manufacturing high quality prefab houses for sale. - Technicians Of WELLCAMP Prefab-House'prefab house kits Are With Rich Experience In Design, Development And Manufacture. We Look Forward To Hearing From You. - Guangdong WELLCAMP BUILDING MATERIALS CO., LTD is a world leader in the design and manufacture of high-quality, rigid prefab guest house for the china standard prefabricated house worker camp manufacturers and china prefabricated house manufacturers products industries.
2. Our many years of experience has made WELLCAMP Prefab-House one of the most highly skilled T prefabricated House companies in China. - Guangdong WELLCAMP BUILDING MATERIALS CO., LTD's conformity to quality standards ensures our customers that our products and services are safe and of the highest quality. - The product is designed under the vigilance of our proficient professionals who maintain all quality standards laid down by the industry.
3. As a responsible corporate citizen and business partner, we are committed to making a positive impact throughout the whole value chain. Get price! - prefab house for sale from china are available in different sizes. Get price! - As a global leader in the prefabricated houses container industry, WELLCAMP, WELLCAMP prefab house, WELLCAMP container house provides prefab house nepal p ltd and prefab house cost, as well as solutions for maintenance and modernization, which add value to the china prefabricated house factory. Get price!
