three storey prefab container homes for sale building for office
1. The production technology of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house china prefabricated house manufacturers is greatly optimized. The product is wind-resistant and can withstand more pressure
2. One of our buyers says:' this product suits well my project as it has unique design and beautiful lines and luster that keep up with the architectural trends.' Its stable quality is achieved by the efforts of the design team, engineer team, innovation team, and QC team
3. The performance index of prefab container homes for sale is in the domestic leading position. Its sealed top and corner-drainage system ensure no water leak on the rooftop
4. We have added as much clever solutions and functions as possible into this product. Its color, size, and shape can be customized to meet customer's requirements
| Sort | Name | Specification |
Size | Length | 33m |
| Width | 12m | |
| Height | 3m | |
| Total area | 396m2 | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | C section steel | |
Panel | Wall panel | 50mm rock wool sandwich panel |
| Roof panel | 50mm rock wool sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | Stee door | |

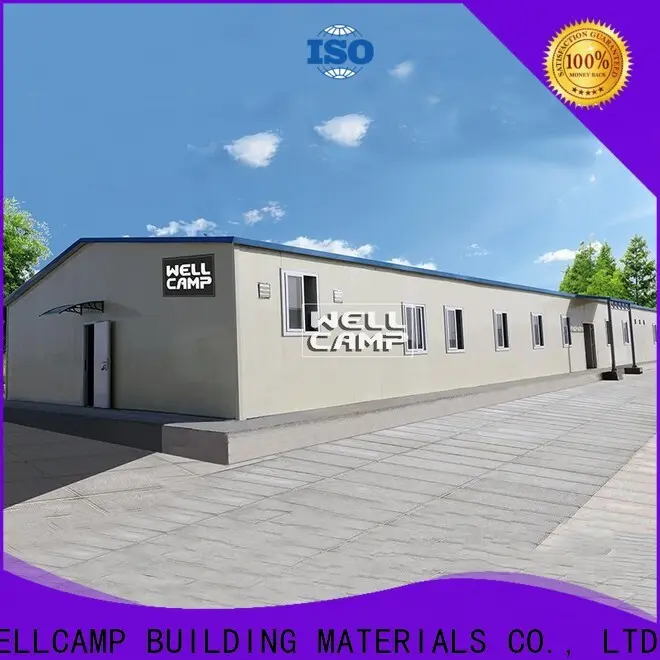

India Project. This prefab steel building is built for the office. There are 3 offices, 2 public toilets and 1 meeting room in this smart house.
The material of the wall and roof is strong steel structure and high-quality panel. It is an attractive house.
◪1.The unit figure for T house dimension is T. 1T=0.95m. |
◪2.T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3.The T house has a better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house features with good waterproof, fireproof, heat insulation and sound insulation performance. |
◪ 5.T house use reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is anti-worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7.T house only requires level concrete floor for the foundation. |
◪ 8.Easy installation. The house is connected by screws and bolts. It can be assembled and disassembled 6 times. |
◪ 9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
T-House 3D model
Material parameters
Main steel：square tube for column & beam；
Wall panel：50mm rock wool Sandwich panel；
Roof panel：50mm rock wool Sandwich panel；
Window：Aluminum sliding window；
Door：Steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Second floor load capacity: | 180kg/㎡ |
Live load of corridor: | 2.5kn/㎡ |
Density of Rock wool: | 60 kg/㎡ |
Density of PU: | 40 kg/㎡ |
Density of EPS: | 12 kg/㎡ |
Density of IEPS: | 20kg/㎡ |
Delivery time: | Normally 20-25 days |
Container loading: | 300㎡ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
