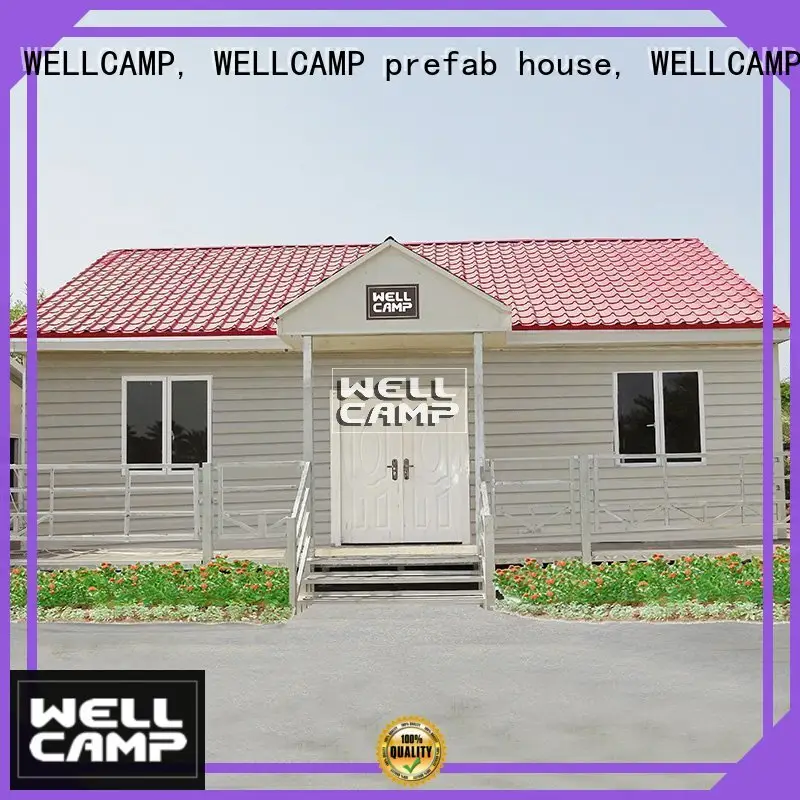

WELLCAMP, WELLCAMP prefab house, WELLCAMP container house apartment modern prefabricated houses wholesale for countryside
1. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house modern prefabricated houses is completed by our professional architects and engineers who consider every project carefully such as the location, topography, climate, and culture.
2. prefab modular house is manufactured based on superior materials and reasonable structural design. It is excellent in the resistance to impact, abrasion, corrosion, and aging. Easy to clean, it can save a certain amount of maintenance costs for users.
3. prefab modular house is made from safe materials that are harmless to human health. Besides, the firm connection of each part greatly enhances the stability of the overall structure and effectively prevents wind, shock and impact.
4. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD is sophisticated in the field with decades years of experience.
| Sort | Name | Specification |
Size | Length | 10m |
| Width | 7.2m | |
| Height | 5.5m | |
| Total area | 72m2 | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | “C” section steel | |
Panel | Wall panel | 100mm concrete panel with outside decoration sheet |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | 1200*930 aluminum sliding window |
| Door | Steel Door | |
◪1.Modular Villa is easy to build, low cost, significantly time-saving and labor saving comparing to the traditional civil buildings. |
◪2.Internal design can be customized according to your own stylish apartment with bedrooms, living room, kitchen and toilet inside. |
◪ 3.External decoration sheet / internal wall paper is used for better appearances of the house. |
◪ 4.Ceramic tile, ceiling, sit down toilet, wash basin and shower are conventional arrangements. |
◪ 5.Easy to build. The house is connected by bolts and screws. 6 labors constitute one team, which can install an area of 100 square meters each day. |
Steel Villa 3D model
Material parameters
Main steel：C section steel for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Materials for the wall and roof: | EPS/IEPS/Rock wool/PU |
Thickness of the wall and roof: | 50mm/75mm/100mm |
Accessories: | Ceramic tile,ceiling,toilet,wash basin |
Delivery time: | Normally 20-25 days |
This steel villa can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
Company Features
1. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD is known internationally for its high quality prefab modular house .
2. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD focuses on the development of R&D objects for modular house .
3. Our ultimate strive is to become a globally modern modular house china supplier. Ask online! Quality First, Customer Foremost' is the unswerving belief of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house. Ask online! WELLCAMP, WELLCAMP prefab house, WELLCAMP container house will continue to serve every customer with professional service. Ask online! Customer satisfaction is WELLCAMP Prefab-House's internal motivation and our commitment to concrete modular house industry. Ask online!
