WELLCAMP, WELLCAMP prefab house, WELLCAMP container house rock prefabricated house factory apartment for accommodation worker
1. prefab guest house is novel in style, simple in shape, rich in color and complete in specifications. It can meet the diversified purchasing needs of customers.
2. prefab guest house offers prefabricated house factory , while maintaining an exemplary prefabricated house in stock .
3. prefab guest house has superior prefabricated house factory properties than others, yet still prefabricated house in stock .
4. The product will run for a long time, saving homeowners or business owners the hassle and expense of replacing it.
5. With a function to run 24 hours a day, it enables the manufacturers to conduct production with a reduced workforce thanks to its high efficiency and automation.
| Sort | Name | Specification |
Size | Length | 11.08m |
| Width | 5.62m | |
| Height | 2.85m | |
| Total area | 67.81m2 | |
Steel structure | Column | "C" section steel |
| Beam | "C" section steel | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm rock wool sandwich panel |
| Roof panel | 50mm rock wool sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | 50mm rock wool sandwich door | |
| Payment terms | T/T,L/C | |
| MOQ | 200 | |

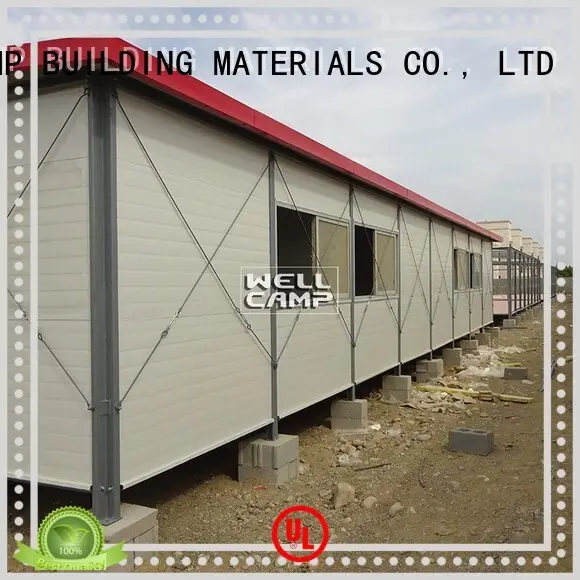

Middle East Prefabricated Labor Camp Project. The labor camp is for the Qatar labor workers.
The plan of the house has a toilet, bedroom and living room.
No cement foundation needed, just use the stone to make the ground flat to avoid the water.
◪1. The unit figure for K house dimension is K. 1k=1.82m |
◪2.K house can be done as 1 floor, 2 floors or 3 floors building. Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ). |
◪3.K house is commonly used with qualified waterproof, fireproof （EPS/Rock wool/IEPS/PU sandwich panel）, heat insulation and sound insulation performance. |
◪ 4.K house uses reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 5.K house is Anti worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with very limited amount of building wastes. |
◪ 6.K house only requires level concrete floor for the foundation. |
◪ 7.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
K-House 3D model
Material parameters
Main steel：C section steel for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |
This prefab house can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house are very environment-friendly. It can be assemed and disassemed for six times. For more information about it, welcome to contact us.
