WELLCAMP, WELLCAMP prefab house, WELLCAMP container house economical prefab shipping container homes for sale online for labour camp
1. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house china prefabricated house manufacturers is made of fine raw materials, aesthetic and practical. It is highly evaluated by customers around the world, such as the Middle East, Africa, and Southeast Asia
2. Sustainability touches all aspects of Guangdong WELLCAMP BUILDING MATERIALS CO., LTD's business. The service life of the product is more than 20 years
3. The service life of this product is highly guaranteed by the strict test procedure which is in line with international standard. It is tested to be high performance and user-friendly. The product is easy to move and install
| Sort | Name | Specification |
Size | Length | 52.25m |
| Width | 15.2m | |
| Height | 9m | |
| Total area | 1550.4m2 | |
Steel structure | Column | "H" section steel |
| Beam | "H" section steel | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm rock wool sandwich panel |
| Roof panel | 50mm rock wool sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | Double opening stee door | |

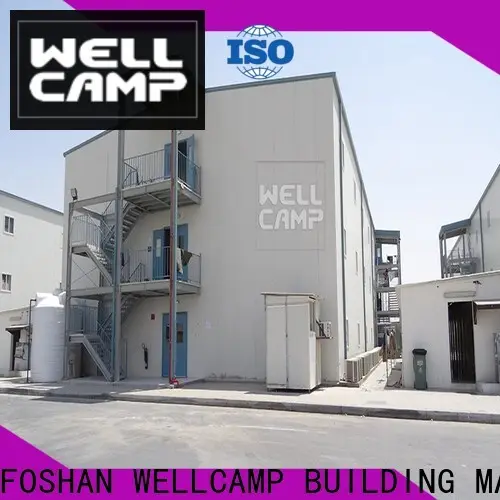

Qatar Project. These three floors construction buildings were built for the labors' dormitory. These buildings totally have 42 bedrooms, 12 public toilets and 4 stairs.
This kind of house is very suitable for the prefab labor camp accommodation with strong designs.
◪1.The unit figure for T house dimension is T. 1T=0.95m. |
◪2.T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3.The T house has a better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house features with good waterproof, fireproof, heat insulation and sound insulation performance. |
◪ 5.T house use reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is anti-worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7.T house only requires level concrete floor for the foundation. |
◪ 8.Easy installation. The house is connected by screws and bolts. It can be assembled and disassembled 6 times. |
◪ 9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
T-House 3D model
Material parameters
Main steel："H" section steel for column & beam；
Wall panel:50mm rock wool Sandwich panel；
Roof panel：50mm rock wool Sandwich panel；
Window：Aluminum sliding window；
Door：Double opening steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Second floor load capacity: | 180kg/㎡ |
Live load of corridor: | 2.5kn/㎡ |
Density of Rock wool: | 60 kg/㎡ |
Density of PU: | 40 kg/㎡ |
Density of EPS: | 12 kg/㎡ |
Density of IEPS: | 20kg/㎡ |
Delivery time: | Normally 20-25 days |
Container loading: | 300㎡ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
