WELLCAMP, WELLCAMP prefab house, WELLCAMP container house economical prefab shipping container homes for sale refugee house for labour camp
1. The offered WELLCAMP, WELLCAMP prefab house, WELLCAMP container house prefabricated houses container is crafted using cutting-edge production technology in compliance with the current market standards. The product is wind-resistant and can withstand more pressure
2. The popularity of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house also benefits from the implement of quality assurance and high-quality service. The design of the product is a blend of simplicity and utility
3. This product is extremely durable and can withstand harsh weather conditions. It is constructed from corrugated steel which is one of the toughest metals in the world! Its outer appearance is characterized by vivid color
4. This product can be easily transported by ship, truck or rail. It already conforms to standard shipping dimensions before leaving the factory. The material of the product can be recycled
5. This product is corrosion resistant. Its proper coating thickness protects it on the open air with a life cycle up to decades of years. Its color, size, and shape can be customized to meet customer's requirements
| Sort | Name | Specification |
Size | Length | 33m |
| Width | 12m | |
| Height | 3m | |
| Total area | 396m2 | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | C section steel | |
Panel | Wall panel | 50mm rock wool sandwich panel |
| Roof panel | 50mm rock wool sandwich panel | |
Accessories | Window | Aluminium alloy sliding window |
| Door | Stee door | |

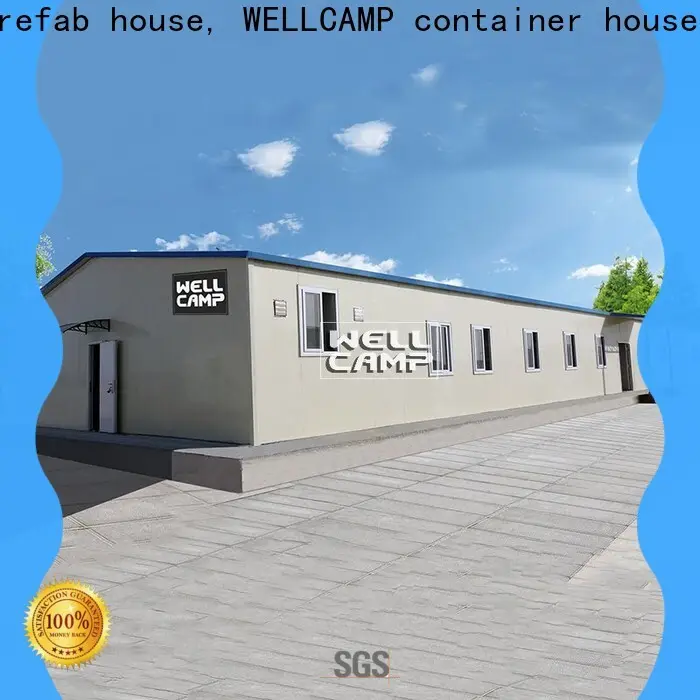

India Project. This prefab steel building is built for the office. There are 3 offices, 2 public toilets and 1 meeting room in this smart house.
The material of the wall and roof is strong steel structure and high-quality panel. It is an attractive house.
◪1.The unit figure for T house dimension is T. 1T=0.95m. |
◪2.T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3.The T house has a better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house features with good waterproof, fireproof, heat insulation and sound insulation performance. |
◪ 5.T house use reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is anti-worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7.T house only requires level concrete floor for the foundation. |
◪ 8.Easy installation. The house is connected by screws and bolts. It can be assembled and disassembled 6 times. |
◪ 9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
T-House 3D model
Material parameters
Main steel：square tube for column & beam；
Wall panel：50mm rock wool Sandwich panel；
Roof panel：50mm rock wool Sandwich panel；
Window：Aluminum sliding window；
Door：Steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Second floor load capacity: | 180kg/㎡ |
Live load of corridor: | 2.5kn/㎡ |
Density of Rock wool: | 60 kg/㎡ |
Density of PU: | 40 kg/㎡ |
Density of EPS: | 12 kg/㎡ |
Density of IEPS: | 20kg/㎡ |
Delivery time: | Normally 20-25 days |
Container loading: | 300㎡ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
