WELLCAMP, WELLCAMP prefab house, WELLCAMP container house light steel steel sheds supplier wholesale
1. The production of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house steel sheds adopts the principle of lean production method. By using the product, no construction waste will be generated
2. Dressing this product will make people feel good and natural every time. This will save people time spent on garment matching and will have more energy to treat others better. The design of the product is a blend of simplicity and utility
3. The product features a high anti-deformation property The steel sheds thus produced has features like steel shed design.
4. steel shed design that has been developed by our professional team offers great supports for the operation of steel sheds. Its outer appearance is characterized by vivid color
| Sort | Name | Specification |
Size | Length | 55m |
| Width | 24m | |
| Height | 6m | |
| Total area | 1296m2 | |
Steel structure | Column | H Beam |
| Beam | H Beam | |
| Purlin | C section steel | |
Panel | Wall panel | 0.426 Color Steel Sheet/50mm EPS/50mm PU sandwichpanel |
| Roof panel | 0.426 Color Steel Sheet/50mm EPS/50mm PU sandwichpanel | |
Accessories | Window | Aluminum sliding window |
| Door | Steel sliding door/Electric rolling door | |
◪1.The structure is strong “H” section steel and “C” section steel. |
◪2.Single steel sheet or sandwich panel for the wall & roof. |
◪3.Normally requires cement foundation of 600mm at least. |
◪ 4.The height of the brick or concrete wall from 1m to 2m is suggested, for a better waterproofing performance before installing prefabricated wall panels. |
◪ 5.All the steel structure is painted and anti-rust which can be normally used for more than 30 years without any building wastes. |
◪ 6.Easy to build. The building is connected by bolts and screws. 6 labors constitute one team, can install areas of 300 square meters each day. |

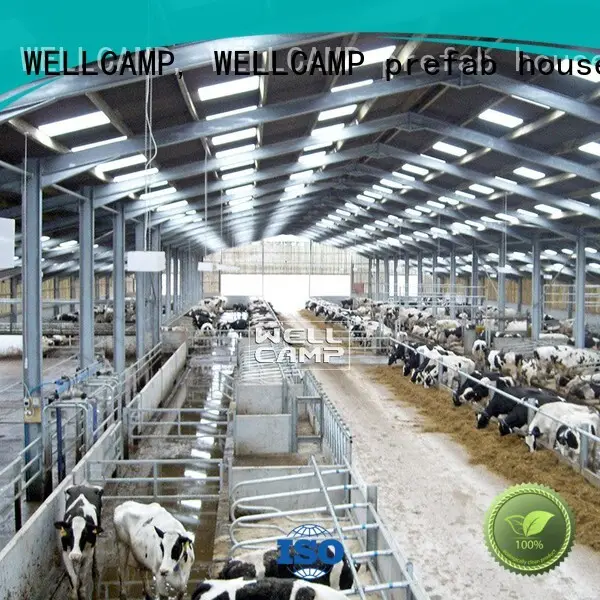

Cowshed 3D model
Material parameters
Main steel：C section steel for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Wall and roof panel: | EPS/IEPS/ROCK WOOL/PU |
Thickness of the wall and roof: | 50mm/75mm/100mm |
Delivery time: | Normally 20-25 days |
Container loading(50mm): | 300㎡/HQ |
This cowshed can be used as the dormitory,office,school,canteen,store room,shop,clinic and so on, The materials of the house is very environment friendly. It can be assemed and disassemed for six times. More information about it, welcome to contact us.
Company Features
1. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD is one of the most trusted partners for quality steel shed design manufacturing. We have a wealth of product developing experience. We put great emphasis on technology of steel sheds.
2. We are not the only one company to produce steel shed , but we are the best one in term of quality.
3. Our technology is always one step ahead than other companies for steel sheds for sale . Our love for our career drives us to fulfill our mission and pursue perfect steel shed construction . Inquire!
