WELLCAMP, WELLCAMP prefab house, WELLCAMP container house modern prefab shipping container homes for sale online for office
1. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house is outstanding by its unique design. The material of the product can be recycled
2. For my construction projects, this product could be an ideal solution. It is able to match my scheduled architectural styles.- Said one of our customers.
3. Structural construction can be completed by simply emplacing the same kinds of this product. It is already designed to interlock for ease of mobility during transportation. It is highly evaluated by customers around the world, such as the Middle East, Africa, and Southeast Asia
4. This product resists corrosion. It is made from Corten steel, sometimes called “weathering steel”. This is alloyed steel mixed with other metals that react when exposed to air and water. This reaction results in the formation of a layer of oxidization that prevents further corrosion of the metal. The service life of the product is more than 20 years
5. This product is able to withstand all different types of weather and environments without deteriorating. This is achieved thanks to its metallic makeup, a type of weathering steel known as Corten (or Cor-Ten). It can be freely combined with other products to maximize the space
| Sort | Name | Specification |
Size | Length | 15.2m |
| Width | 5.7m | |
| Height | 6m | |
| Total area | 188.48 m² | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich Panel |
| Roof panel | 50mm EPS sandwich Panel | |
Accessories | Window | 1200*930 aluminum sliding window |
| Door | EPS sandwich door | |

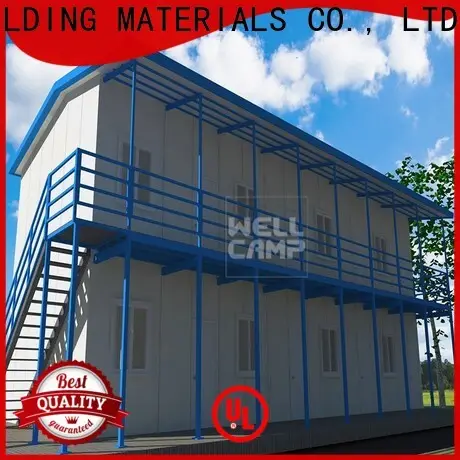

Two-floor Prefabricated Steel Building. This steel building is built for workers' accommodation with totally 8 rooms.
All the steel structures are hidden inside with modern and good looking designs. China prefabricated home.
◪1.The unit figure for T house dimension is T. 1T=0.95m. |
◪2.T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3The T house has a better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house features with good waterproof, fireproof, heat insulation and sound insulation performance. |
◪ 5.T house use reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is anti-worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7. T house only requires level concrete floor for the foundation. |
◪ 8. Easy installation. The house is connected by screws and bolts. It can be assembled and disassembled 6 times. be assembled and disassembled 6 times. |
◪ 9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
T-House 3D model
Material parameters
Main steel：Square tube for column&beam；
Wall panel：50mm EPS Sandwich panel；
Roof panel：50mm EPS Sandwich panel；
Window：Aluminum sliding window；
Door：EPS sandwich door；
ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/m2 |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Second floor load capacity: | 180kg/㎡ |
Live load of corridor: | 2.5kn/㎡ |
Density of Rock wool: | 60 kg/㎡ |
Density of PU: | 40 kg/㎡ |
Density of EPS: | 12 kg/㎡ |
Density of IEPS: | 20kg/㎡ |
Delivery time: | Normally 20-25 days |
Container loading: | 300㎡ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
Company Features
1. With great popularity in global market, WELLCAMP, WELLCAMP prefab house, WELLCAMP container house aims to be better and stronger. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house has its own high-tech labs to manufacture prefab shipping container homes for sale .
2. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house is capable of manufacturing prefab shipping container homes with high quality.
3. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD boasts an R&D team comprised of professional talents. We view success not by our quarterly results, but rather by the long term overall health and growth of the organization. We will keep investing in quality people, industries and capabilities that support our long term vision.
