WELLCAMP, WELLCAMP prefab house, WELLCAMP container house prefab shipping container homes online for labour camp
1. WELLCAMP, WELLCAMP prefab house, WELLCAMP container house modular prefabricated house suppliers is developed incorporating sophisticated technology and is made available to patrons at market leading prices.
2. prefab shipping container homes is made from excellent materials and is free of harmful substances and odor. It is excellent in stability and durability and is effective in resistance to wind, earthquake, high temperature, and corrosion. It is safer, more reliable and eco-friendly than other similar products.
3. prefab shipping container homes has the advantages of windproof property, flame retardant, shock resistance, and heat insulation. It can create a comfortable living environment for users. Moreover, the use of eco-friendly materials improves the re-use rate while ensuring safety and meets the requirements of national energy conservation and emission reduction.
4. The quality of prefab shipping container homes can meet modular prefabricated house suppliers with prefabricated houses manufacturers china .
5. The steady growth of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house over the past few years is due to the high quality prefab shipping container homes and services offered to our customers.
| Sort | Name | Specification |
Size | Length | 43.7m |
| Width | 7.8m | |
| Height | 2.8m | |
| Total area | 340.86m2 | |
Steel structure | Column | Square tube |
| Beam | Square tube | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich panel |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | 1200*930 Aluminum sliding window |
| Door | Glass door & Steel door | |

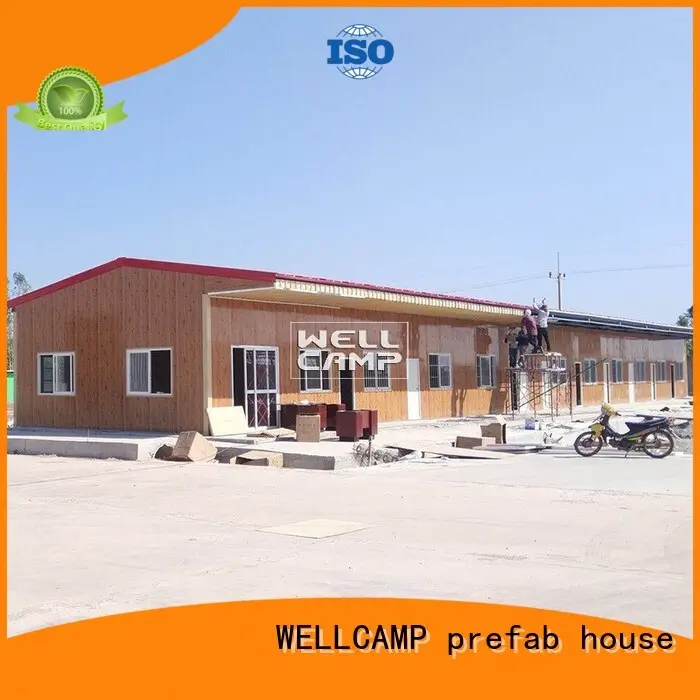

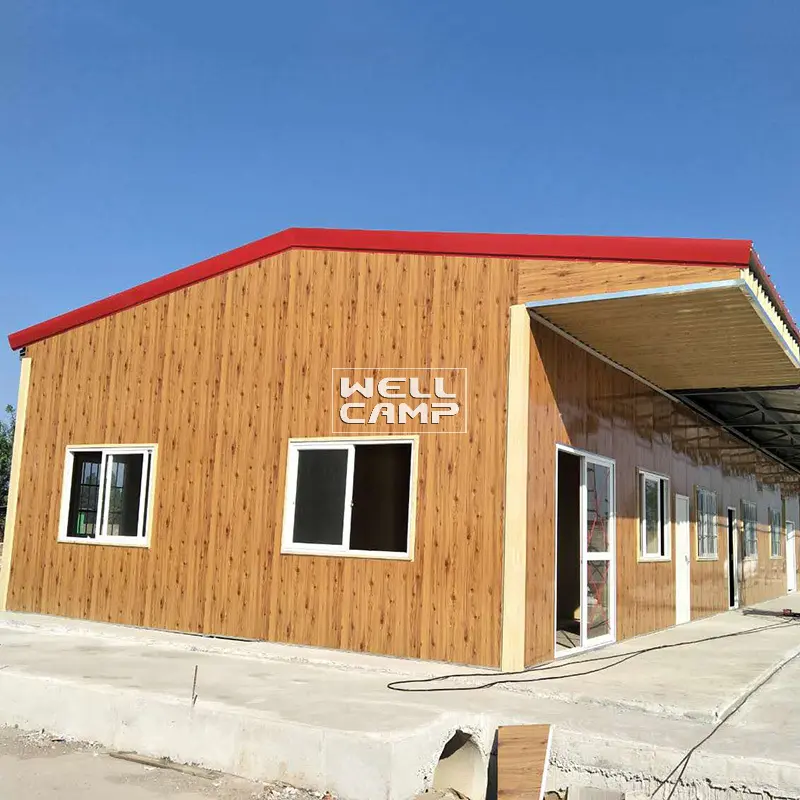

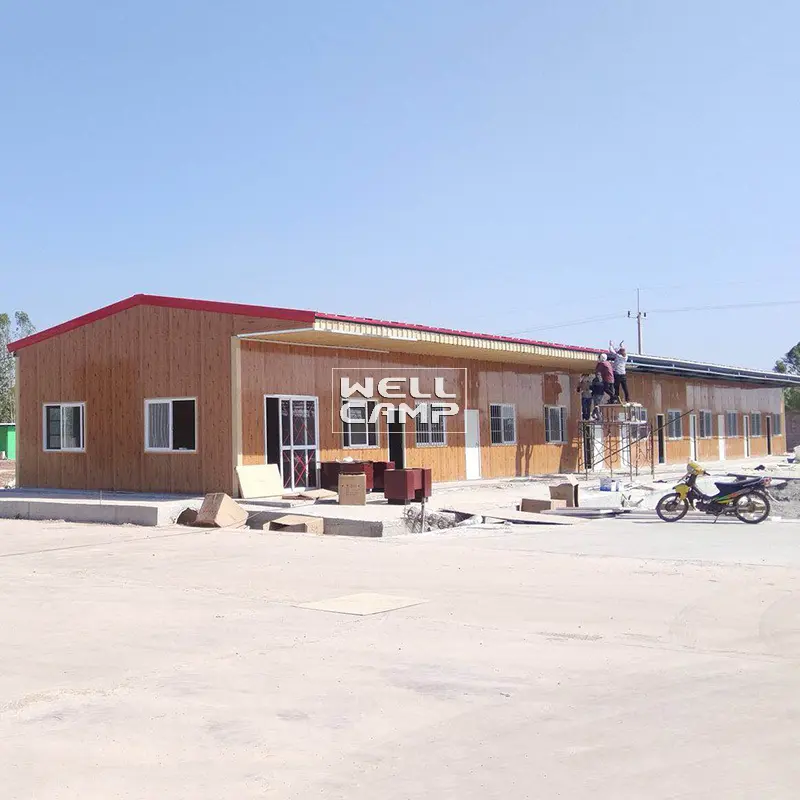

This prefab construction building is located in Thailand.The plan of this office building,have two offices,one meeting room and two toilet.

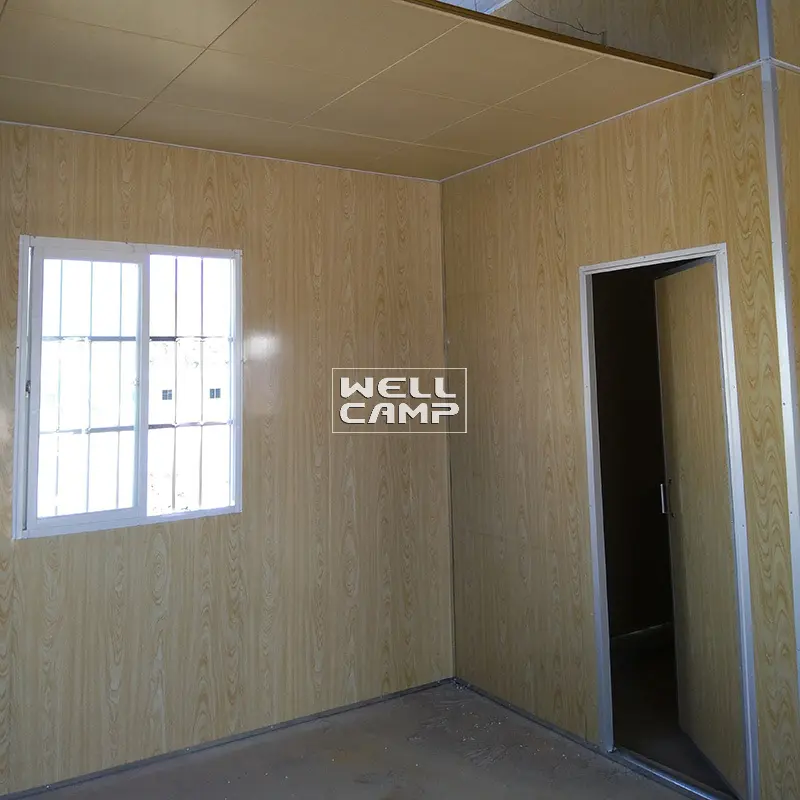

The color of the outside and inside wall is wooden. The one-meter width canopy provides protection for the sunshine and rain.
◪1. The unit figure for T house dimension is T. 1T=0.95m. |
◪2. T house can be done as 1 floor, 2 floors or 3 floors building. |
◪3.3. The T house has a better looking and modern design. All the steel structures are hidden inside. |
◪ 4.T house features with good waterproof, fireproof, heat insulation and sound insulation performance. |
◪ 5.T house use reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled six times. |
◪ 6.T house is anti-worm and ant. All the steel structures are well painted and anti-rust which can be normally used for more than 20 years without any building garbage. |
◪ 7.T house only requires level concrete floor for the foundation. |
◪ 8.Easy installation. The house is connected by screws and bolts. It can be assembled and disassembled 6 times. |
◪ 9.6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
T-House 3D model
Material parameters
Main steel：square tube for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping： 0.326/0.376/0.426mm single steel sheet.
Wind resistance: | Grade 11 |
Earthquake resistance: | Grade 7 |
Snow load capacity of roofing: | 0.6 kn/㎡ |
Live load capacity of roofing: | 0.6 kn/㎡ |
External and internal wall heat transmission coefficient: | 0.35 kcal/㎡hc |
Wall permitted loading: | 0.6 kn/㎡ |
Second floor load capacity: | 180kg/㎡ |
Live load of corridor: | 2.5kn/㎡ |
Density of Rock wool: | 60 kg/㎡ |
Density of PU: | 40 kg/㎡ |
Density of EPS: | 12 kg/㎡ |
Density of IEPS: | 20kg/㎡ |
Delivery time: | Normally 20-25 days |
Container loading: | 300㎡ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
Company Features
1. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD has largest production base and professional management system.
2. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD has a skilled and experienced team.
3. Guangdong WELLCAMP BUILDING MATERIALS CO., LTD is quality-oriented and customer-oriented. Call now! Undertaking responsibilities to promote modular prefabricated house suppliers is our mission. Call now! WELLCAMP, WELLCAMP prefab house, WELLCAMP container house insists on development concept of prefabricated houses manufacturers china to be an eye-catching enterprise. Call now! WELLCAMP, WELLCAMP prefab house, WELLCAMP container house is quality-oriented and committed to provide customers with best quality prefab shipping container homes . Call now!
