WELLCAMP, WELLCAMP prefab house, WELLCAMP container house rock prefab house kits apartment for accommodation worker
1. The production process of WELLCAMP, WELLCAMP prefab house, WELLCAMP container house prefab house kits is continuously inspected by our QC team to make sure that product quality is in line with garment standards and regulations.
2. Under the strict supervision of our quality experts, the product is 100% qualified to the international standards.
3. prefab house kits combines style, presence and exhilarating performance.
4. Due to its remarkable economic return, the product is now widely used in the market.
5. The high commercial value gives the product a wide market application.
| Sort | Name | Specification |
Size | Length | 18.36m |
| Width | 7.44m | |
| Height | 5.7m | |
| Total area | 309.74m2 | |
Steel structure | Column | "C" section steel |
| Beam | "C" section steel | |
| Purlin | "C" section steel | |
Panel | Wall panel | 50mm EPS sandwich panel |
| Roof panel | 50mm EPS sandwich panel | |
Accessories | Window | Aluminum slding windows |
| Door | EPS sandwich door | |

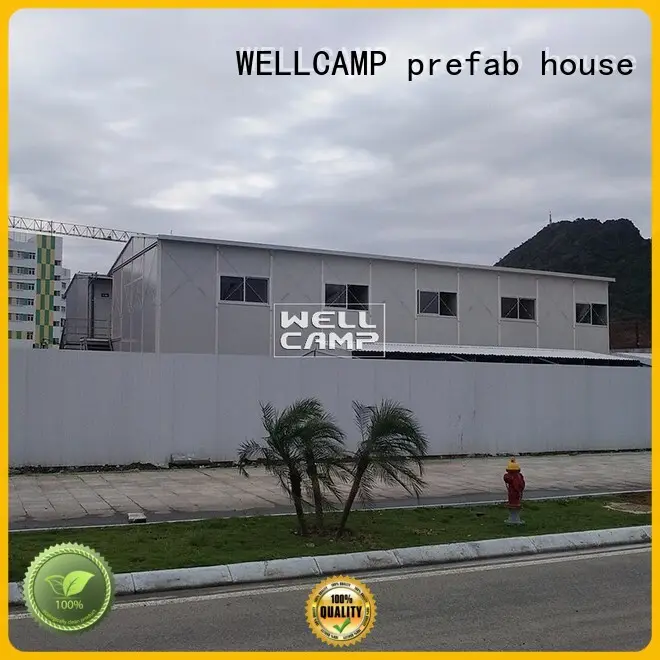

India project. This two-floor prefabricated building is used as the workers' dormitory.
One room is around 20㎡, one room has the capacity of 6-8 people, serving double bed.
◪1. The unit figure for K house dimension is K. 1k=1.82m |
◪2.K house can be done as 1 floor, 2 floors or 3 floors building. Figures for house with different stories: One floor=3P, two floor=6p, three floor=9p ( 1P=0.95m ). |
◪3. K house is commonly used with qualified waterproof, fireproof （EPS/Rock wool/IEPS/PU sandwich panel）, heat insulation and sound insulation performance. |
◪ 4. K house uses reusable materials and is more environment-friendly compared to traditional buildings. It can be assembled and disassembled 6 times. |
◪ 5.K house is Anti worm and ant. All steel structures are well painted and anti-rust which can be normally used for over 15 years with very limited amount of building wastes. |
◪ 6.K house only requires level concrete floor for the foundation. |
◪ 7. 6 labors constitute one team, which can install areas of more than 300 ㎡ each day. |
K-House 3D model
Material parameters
Main steel：C section steel for column & beam；
Wall panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Roof panel：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel；
Window：Aluminum sliding window；
Door：50/75/100mm EPS/IEPS/Rock wool/PU Sandwich panel or steel door；
Ridge capping: 0.326/0.376/0.426mm single steel sheet.
Wind resistance | Grade 11(wind speed≤120 km/h) |
Earthquake resistance | Grade 7 |
Snow load capacity of roofing | 0.6 kn/m² |
Live load capacity of roofing | 0.6 kn/m² |
External and internal wall heat transmission coefficient | 0.35 kcal/m²hc |
Wall permitted loading | 0.6 kn/m² |
Second floor load capacity | 180kg/m² |
Live load of corridor | 2.5kn/m² |
Density of EPS | 12 kg/m² |
Delivery time | Normally 20-25 days |
Container loading | 300-320 m² /HQ |
This prefab house can be used as the dormitory, office, school, canteen, store room, shop, clinic and so on. The materials of the house are very environment-friendly. It can be assembled and disassembled 6 times. For more information about it, welcome to contact us.
